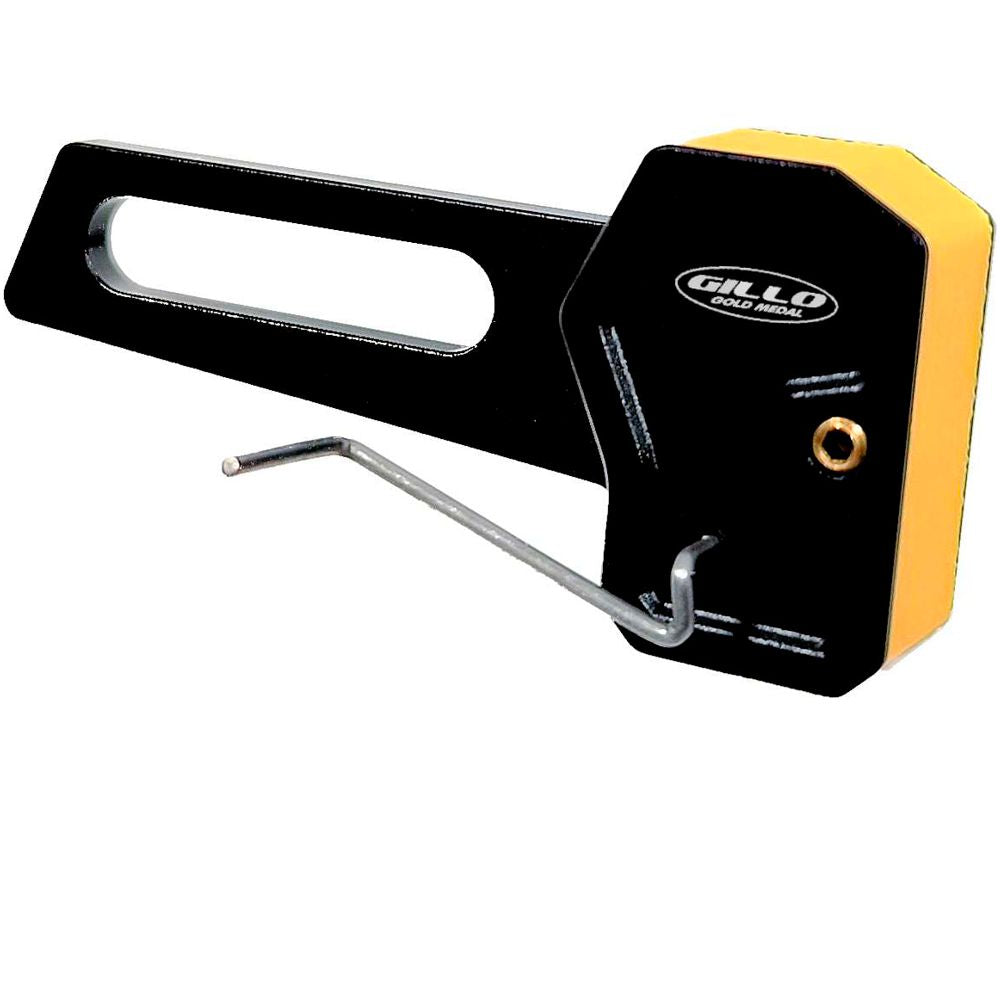

Gillo GMR Universal Magnetic Rest

More than 2 years of development, already tested in competition by some of the top #teamgillo archers in Recurve and Bare Bow as well, we are proposing to the market what we call the Universal Magnetic Rest, the most advanced new solution to help shooting arrows from recurve bows with unprecedented tuning possibilities. The GMR rest can work and react on vertical axis with a force fine tuned by a specific coupling of magnets, (Springy effect) by the simple replacement of one of one magnet, it can also work as a drop away rest with separate tuning of sensitivity and dropping speed. Finally, it can be customized by optional covers of different colours, and the use of wire arms of different shapes and lengths.

• Universal Magnetic Rest for Recurve & Bare Bow risers
• RH Version model: GMR-98 / LH Version model: GMR-99
• Assembled as Vertical resistance adjustable rest
• Can be converted to Drop Away rest by the special Brass magnet holder provided
• Aluminium Black anodized body
• Super power Neodymium magnets operation
• Suitable for Recurve risers from 12 to 16 mm window thickness and 2 plungers holes
• 3D printed plastic colour cover to protect inner mechanism from rain and dirt
• Tested for use of any kind of arrow up to 23xx Aluminium with 220 gr point
• Compatible to all GILLO Risers, fits perfectly the shape of GF risers
• Approx. 36 g mass weight only

Package Includes:

• Black and Yellow Plastic 3D printed covers
• Brass M8 x 1 threaded Brass screw holder with 6 x 5 mm Neodymium magnet, to convert rest to Drop Away function
• 2 Allen wrenches  2 mm and 2.5 mm
• 1 x 5/16-24 x 5/8 Stainless steel Cup head screw with 1 x M8 Stainless steel washer
• 1 x longer rest wire
• 1 x M4 x 8 mm Stainless Steel grub screw for additional tuning range
• Basic instruction manual with QR code to download its full version in PDF format

Optional accessories available:

• GMR-98-PC Plastic Covers of different colours
• GMR-98-/99-SW Arm wires of different lengths

Hole Thread sizes:

• Magnet Holder M8 x1 (fine threads)
• Rotating Magnet holder Side locking 2 x M4
• Back elevation adjustment screw 1 x M4
• Side locking screws 2 x M4
