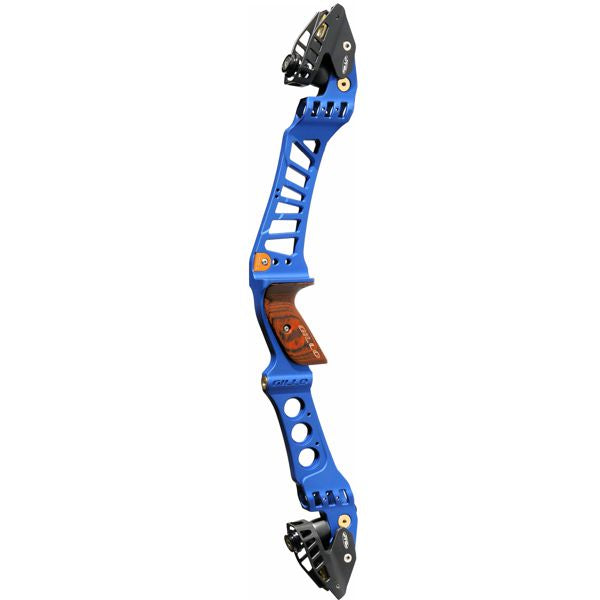

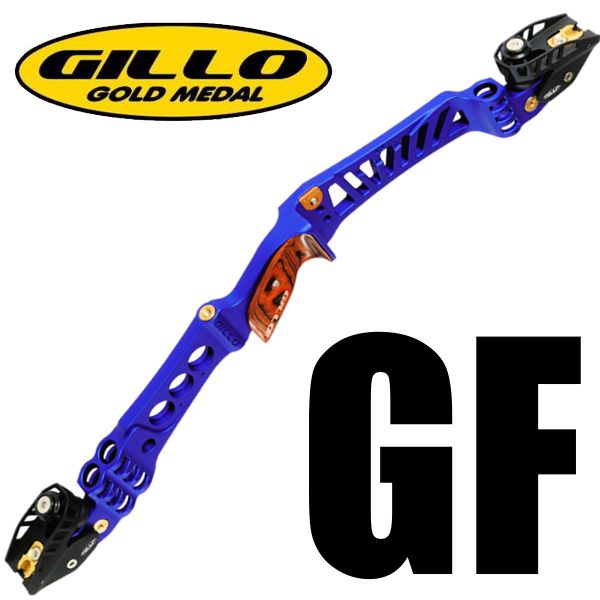

Gillo GF 25in ILF riser

Recurve aluminium milled riser with new Tunnels design for accepting round balancing plugs (included). Dual colour anodized finish. ILF - International Limb Fitting. Features Gillo floating limb pockets for more than 40% poundage adjustment range. Integrated vibration reduction system. Stainless steel limb bolts. Wood laminated advanced grip. Riser sleeve included. Compatible with G1 and G4 barebow weights. Mass weight 1440g.

• Recurve and Bare Bow riser
• ILF Limbs compatible
• Floating limbs pockets allow up to more than 40% poundage adjustment range
• Integrated shock absorbers
• 25.80in length, RH and LH versions
• Body and Pockets machined from solid Aluminium bar
• Matte sandblasted anodized surface
• Aluminium 7075 Limbs alignment plates
• "The Tunnels" perpendicular holes for round balancing plugs
• Special round seats on lower part for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
• Hard Wood, stratified G03-MG-M slim advanced grip
• 1 front stabs bushings, 1 back stabs bushing, both made by Stainless Steel Gold colour Titanium Nitride coated
• 2 special Black anodized Aluminium plugs model G24-TP-01-BK, 5/16 24 tapped, to fit the Tunnels, are included as accessories.
• Front center stabilizer bushing 1mm off from axis for perfect balance
• Compatible to all G1, G2, GQ, G5 and GT Bare Bow weights, grips and accessories
• Approx. 1440 gr mass weight
• Packing includes also long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 clicker and BB weights SS screw, 8 Transversal weights locking grub screws, 2 bolt locking Brass grub screws, 2 x G24-PP-01-BK Plastic plugs.

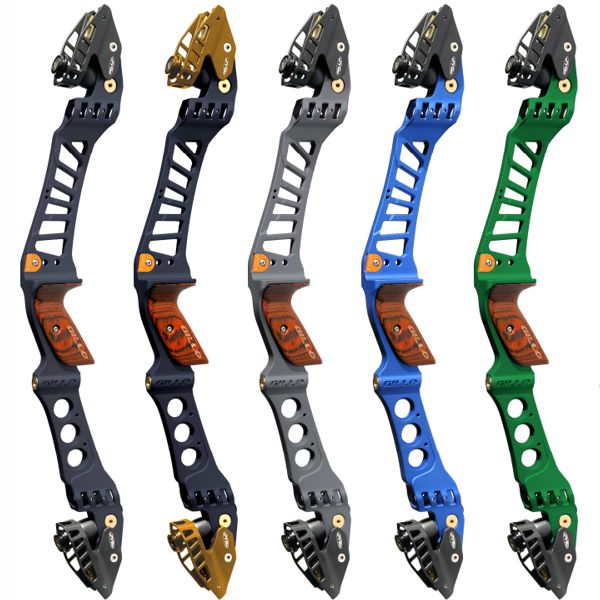

Model / Colours:

• RH Black (KBK)
• RH Grey with Black Pockets (KGY)
• RH Blue with Black Pockets (KBL)
• RH Red with Black Pockets (KRD)
• RH Purple with Black Pockets (KPR)
• RH Green with Black Pockets (KGR)
• RH Black with Gold Pockets (OBK)
• RH Yellow with Black Pockets (KYL)
• RH Orange with Black Pockets (KOG)
• LH Black (KBK)
• LH Grey with Black Pockets (KGY)
• LH Blue with Black Pockets (KBL)
• LH Red with Black Pockets (KRD)
• LH Green with Black Pockets (KGR)

Optional accessories available:

• G04-DK6-AL/SS 6 disk weights kit (Al Black, SS Gold)
• G01-DK6 6 Stainless Steel disk weights kit
• G05-DK2 2 steel disk heavy weights kit
• G03-DK2-TG 2 Tungsten disks Gold color
• G02-CKK Plastic cliker plates in different colours and length
• G01-BW-01 Bare Bow covers from 270 gr to 830 gr
• G01-BW-02 Bare Bow Covers from 400gr to 1170 g
• G03-BW-03 The Hammers Bare bow kit, AL or SS
• G04-BW-04 Bare Bow covers from 300 to 950 g
• G24-BW-05 Bare Bow plug shaft, Stainless Steel
• G24-BW-06 Bare Bow Neoprene amortized shaft and weights
• Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
• Various grips made by wood or plastic 3D printed in various colours

Hole Thread sizes:

• Plugs / Poles side locking: 8 x M4
• Limbs Bolts: M8
• Limbs Bolts side locking: 4 x M5
• Limbs Pockets side locking: 4 x Special Bolts
• Alignment plate inner locking: 2 x M6
• Alignment plate side locking: 4 x M5
• Front stabs: 1 x 5/16-24 UNF
• Rear stabs: 1 x 5/16-24 UNF
• Cushion plunger: 2 x 5/16-24 UNF
• Clicker and Clicker plate: 3 x M4
• Optional cover: 4 x M4
• Sight: 2 x 10-24
• Grip: 2 x M4
